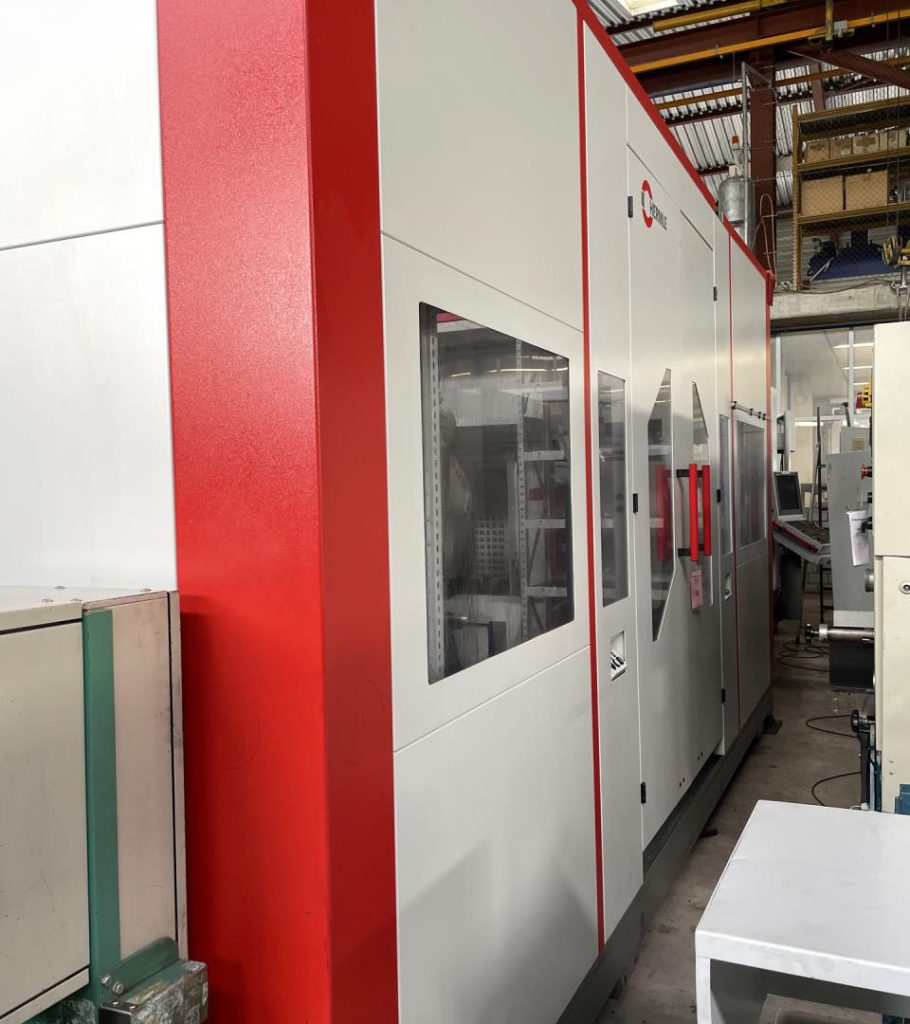

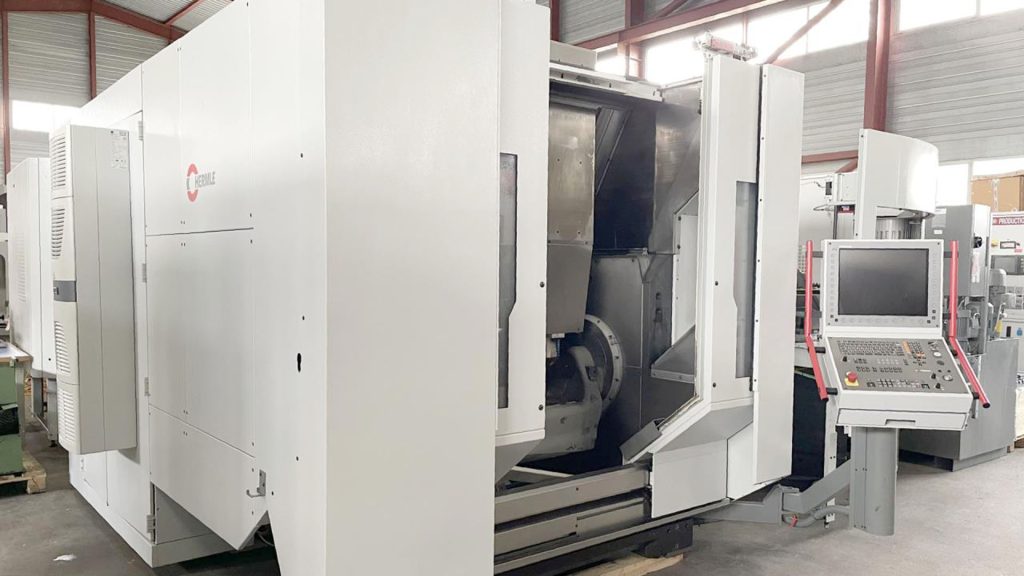

Brand：HERMLE? ? Type：C 42 ? Category：machining centres
 |
|
 |
 |
 |
|
 |
 |
 |
 |
 |
|
 |
 |
 |
|
 |
|
Technical Parameter
| Technical data | |
| Number of machines | 2 |
| Number of axis total | 5 |

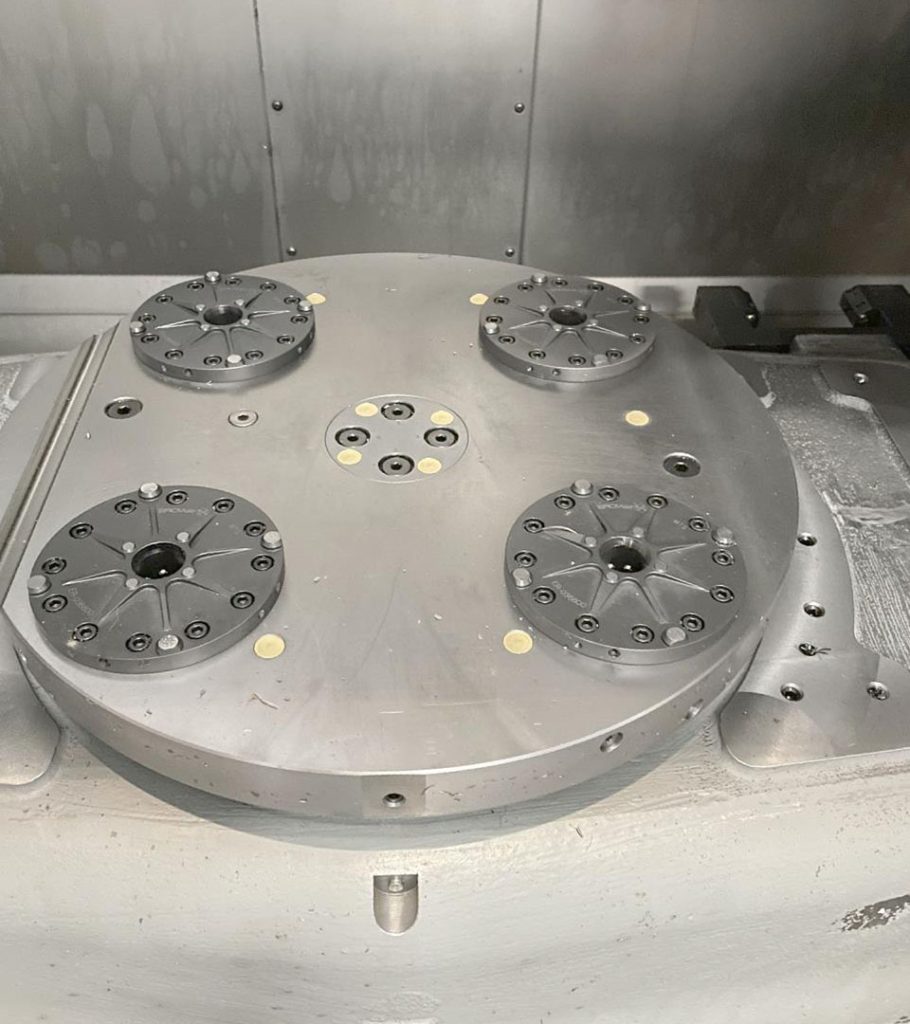

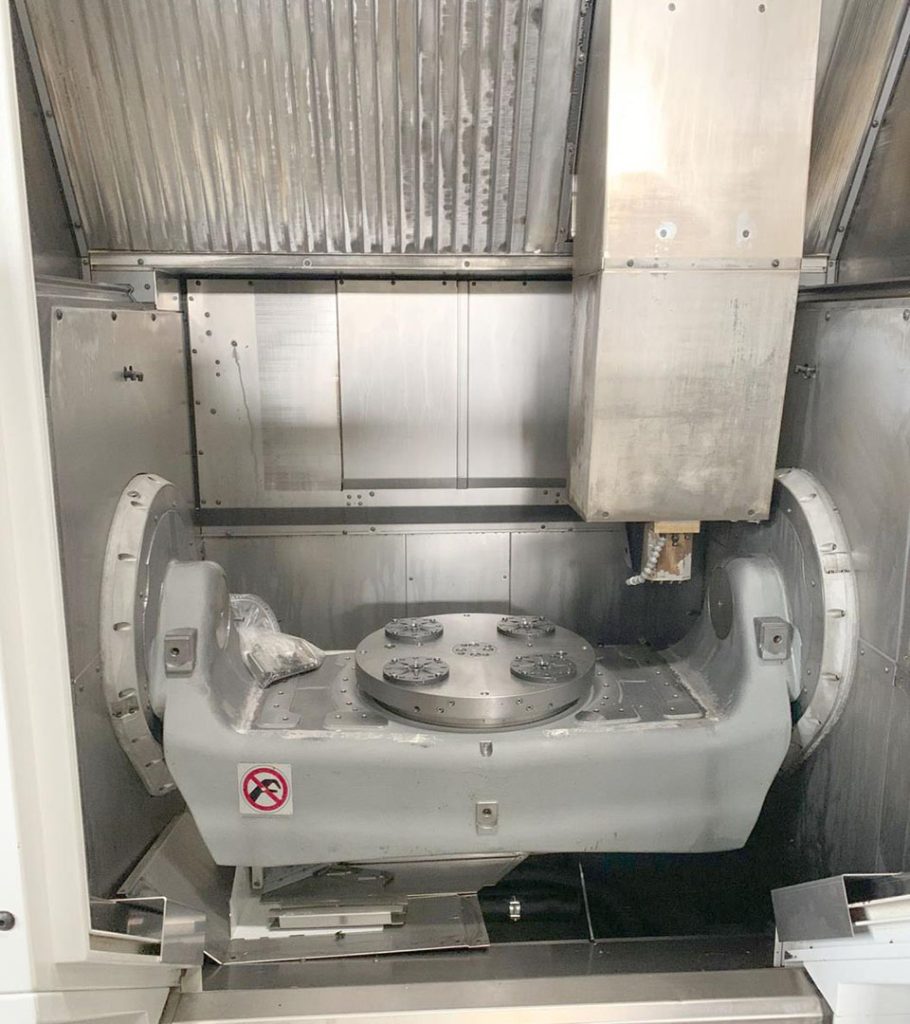

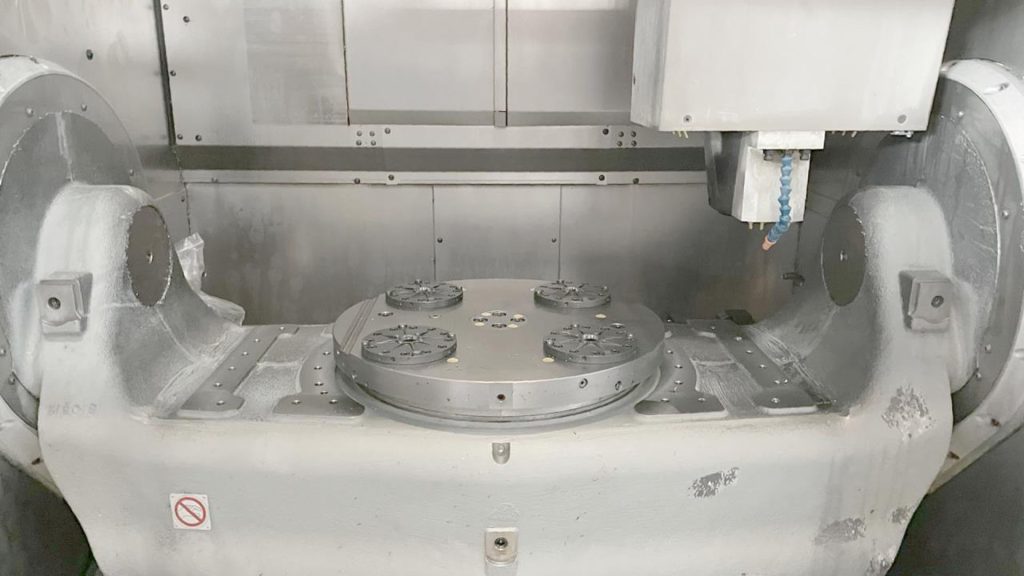

| Circulary table diameter | 440 mm |
| Number of T-channels | 5 |
| T-channel width | 14H7 mm |
| Table load max. | 450 kg |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 800 mm |
| Vertical travel (z axis) | 550 mm |
| Swivel angle (a-axis) | +/-130 ° |
| Table speed | 30 rpm |

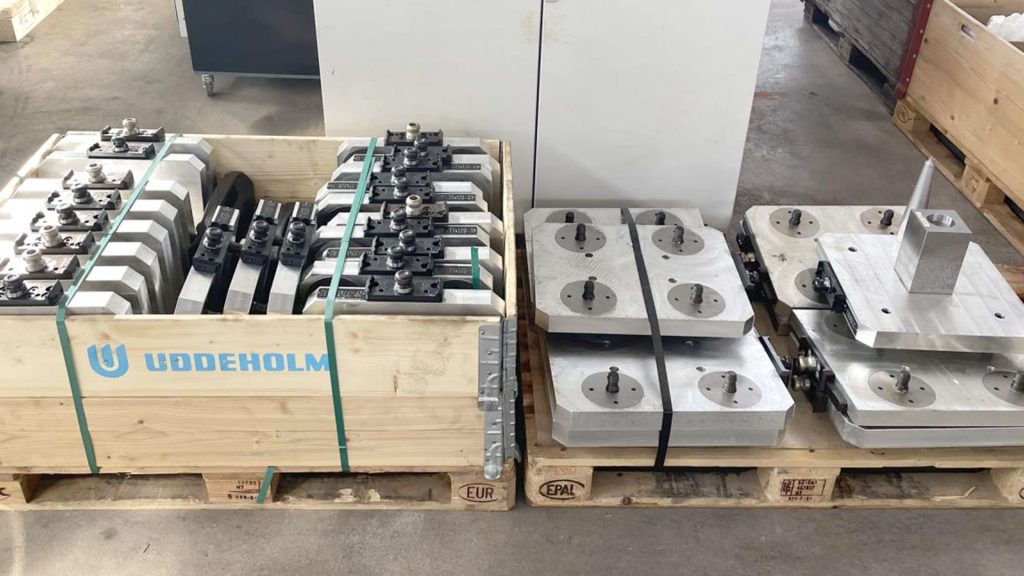

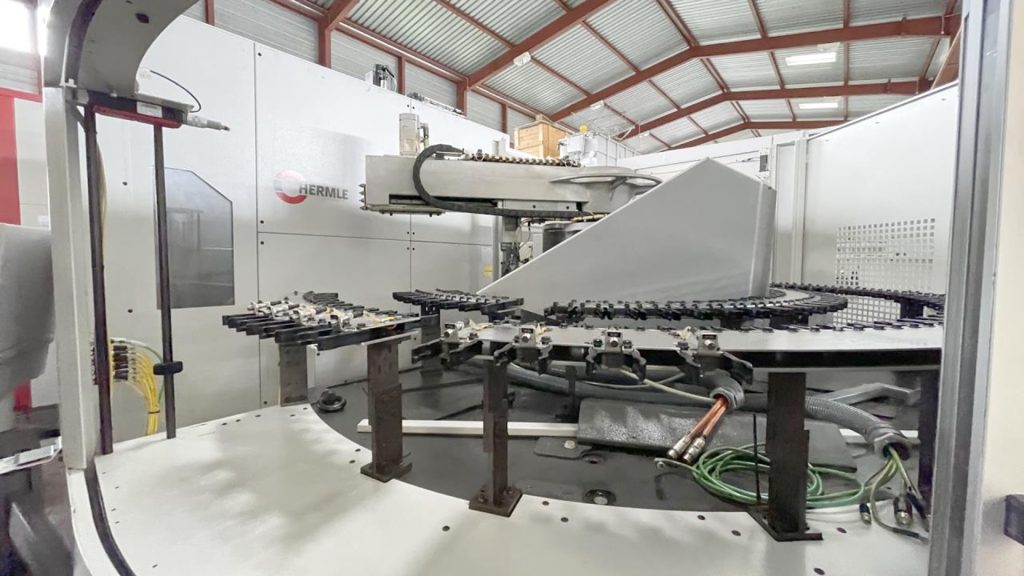

| Pallets chanching device | |
| numbers | 30 |
| Length | 400 mm |
| Width | 400 mm |
| Tool changer | |
| Number of tools | 42 |
| Spindle nose HSK-A | 63 |
| Spindle speeds | |
| stepless | |
| from | 0 rpm |
| up to | 18000 rpm |
| Rapid traverse long. | 45 m/min |
| Rapid traverse transversal | 45 m/min |
| Rapid traverse vertical | 40 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 42 kW |
| Torque max. | 148 Nm |
| Total power required | 37 kVA |
| Machine’s weight about | 13500 kg |
| Overall dimensions machine | |
| Length | 5000 mm |
| Width | 2450 mm |
| Height | 3200 mm |
| Various accessories | |
| Addet tool-holder magazine | |
| number of tools | 160 |
| Coolant through spindle (cts) | 80 bar |
| Air blast through milling spindle | |

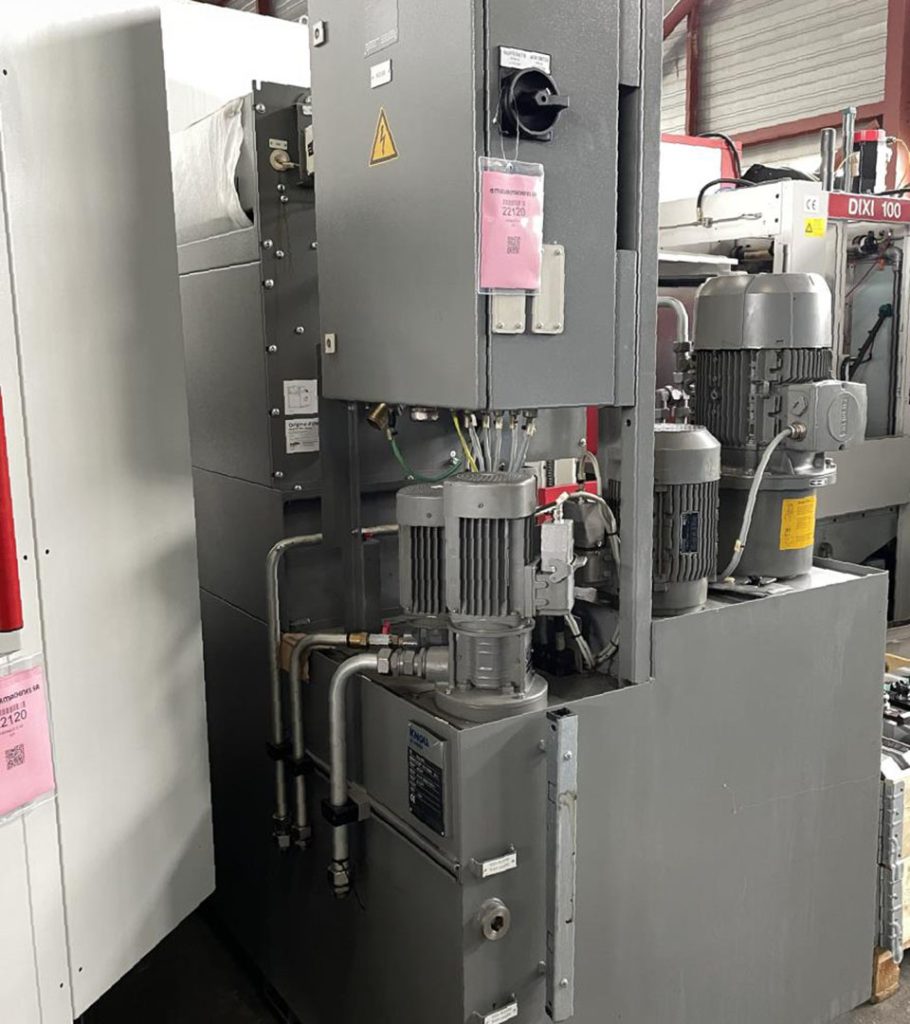

| Paper filter facility | |
| Feeler Renishaw | |
| Tool break control | BLUM |
| Chip conveyor | |
| Pallets number | 30 |
| Oil mist extractor | |

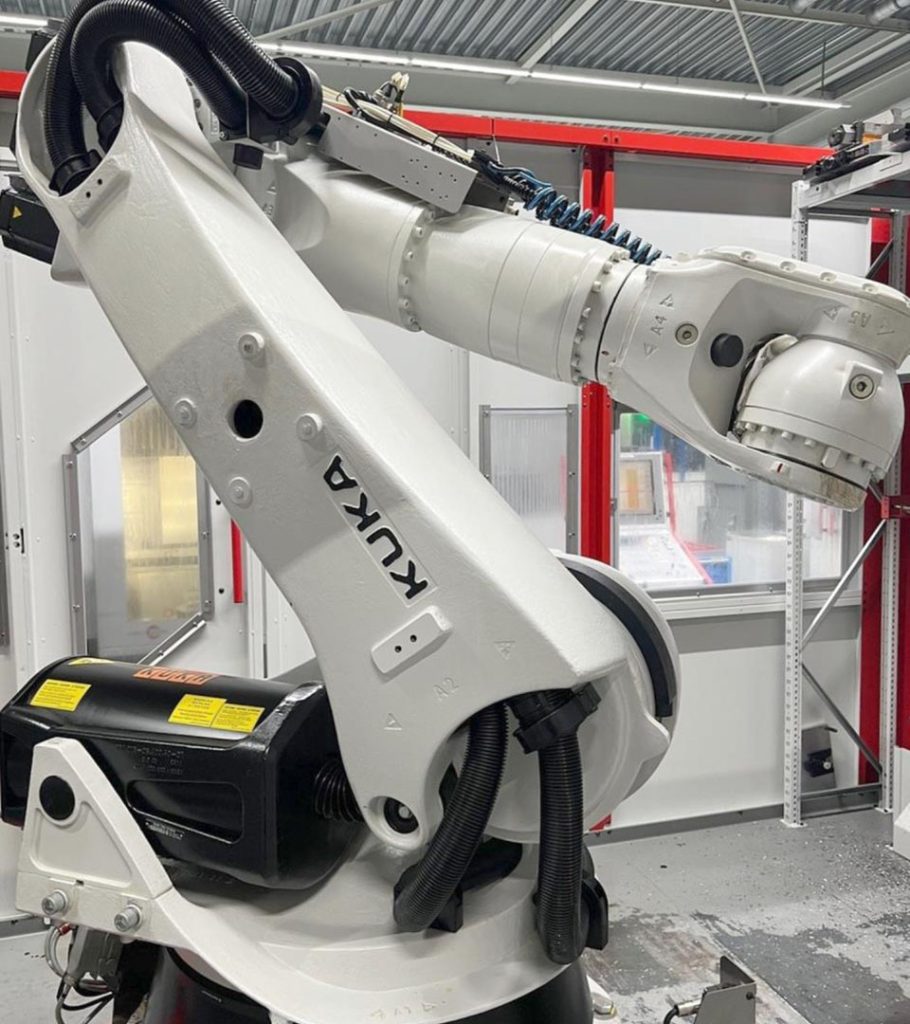

| Loading roboter | KUKA |

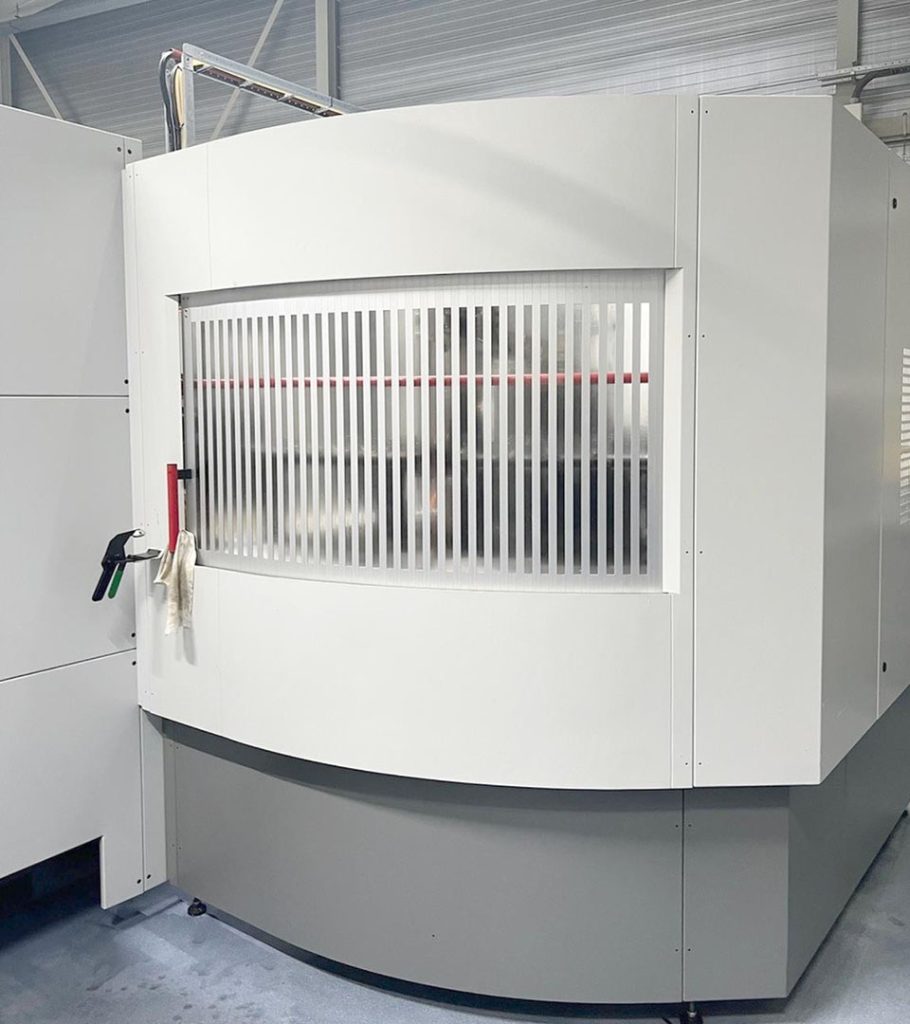

| Rotating viewing window | |
| Interface serial port RS 232 | |
| Interface Ethernet | |
| Interface USB | |

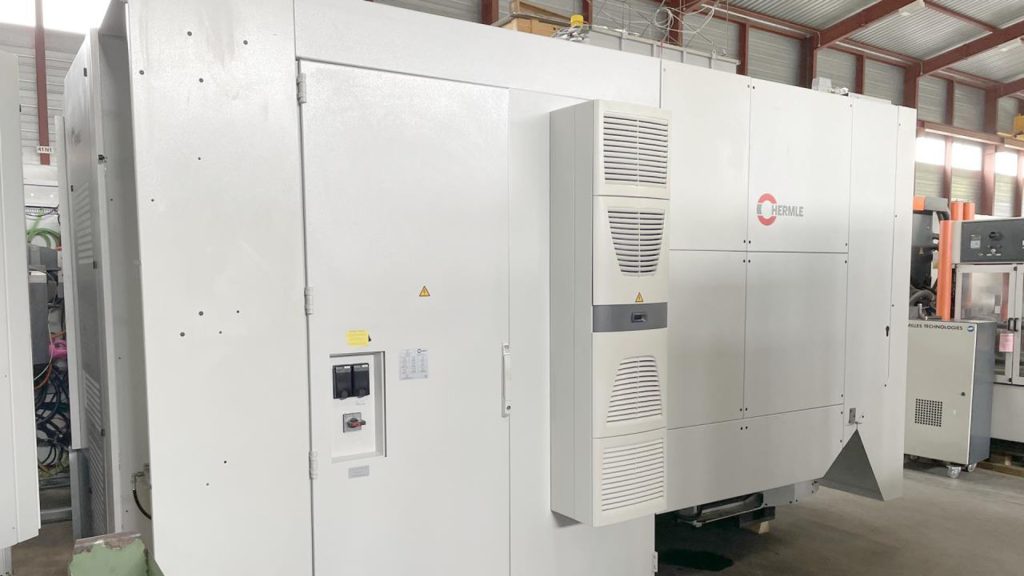

| Switch cabinet Air conditioner | |
| Remarks | |
| spindle hours | 2011 = 7500 h |
| spindle hours | 2012 = 12000 h |
| Spindle revised 2016 / 2020 | |
| Operating hours | 2011 = 43135 h |
| Operating hours | 2012 = 41456 h |
