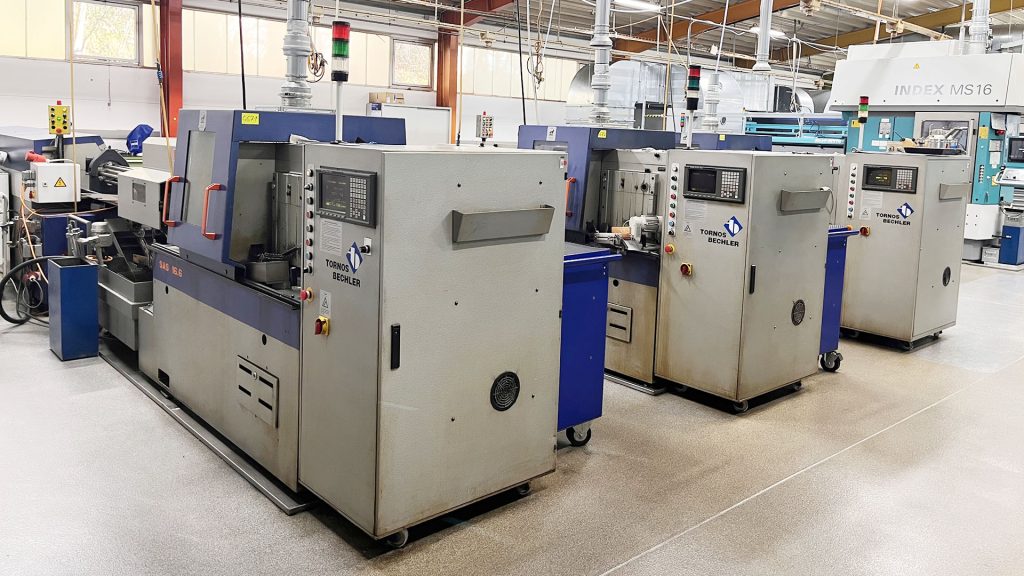

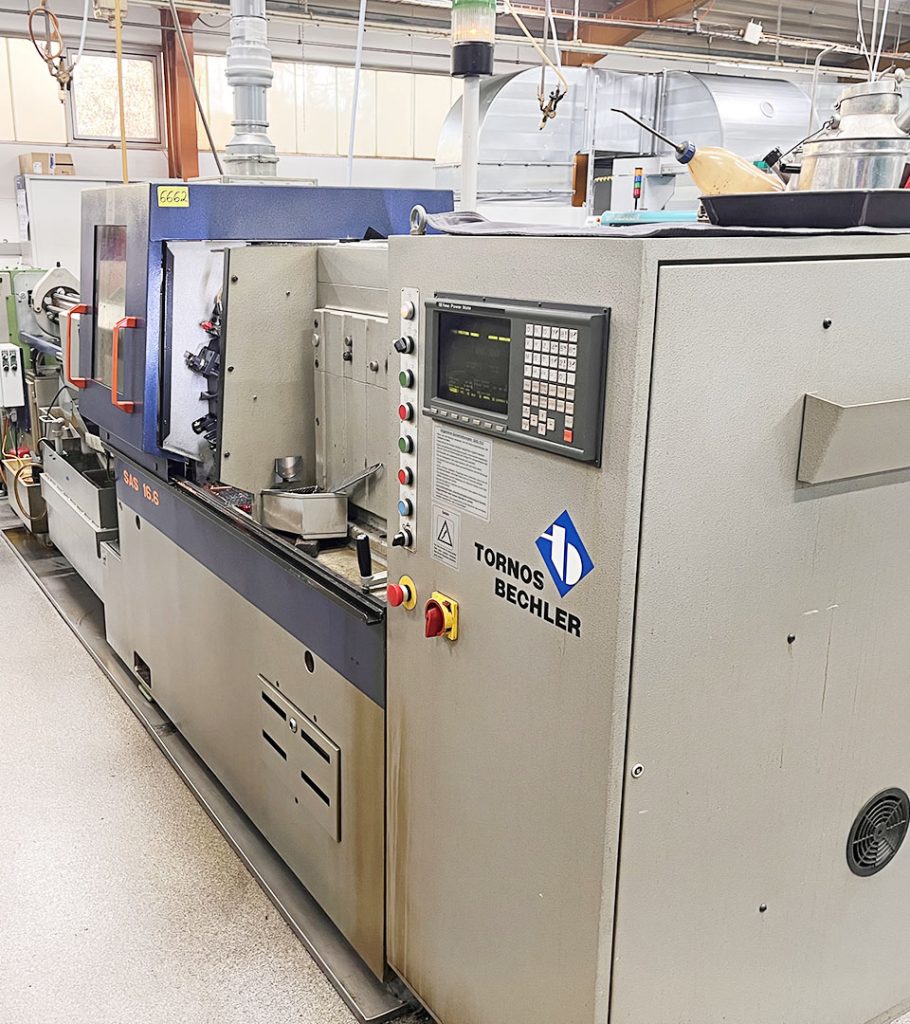

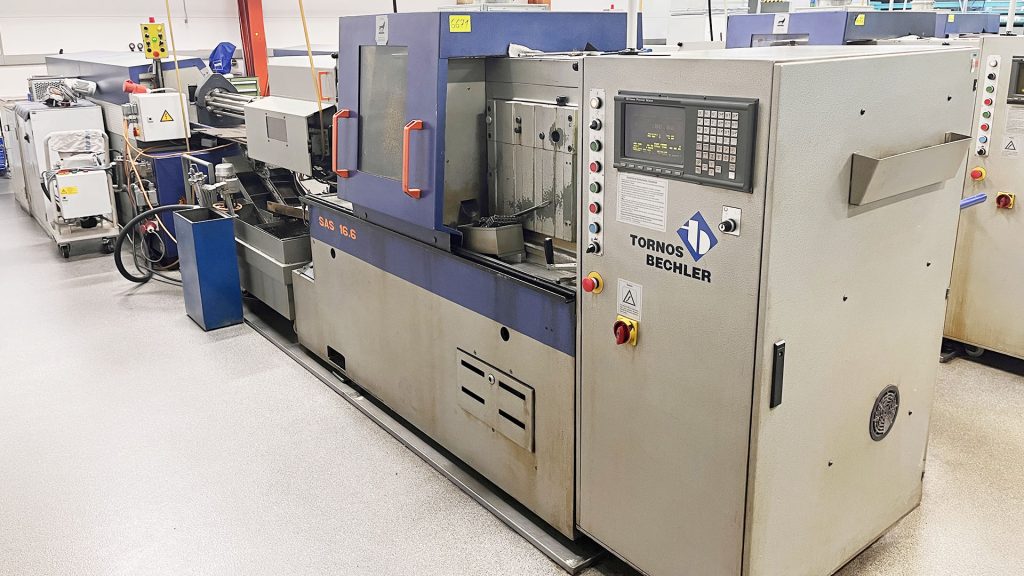

TORNOS CNC lathe type SAS 16.6 in the German factory

Posted by：EurasiacomDate Posted：2025-1

Brand：TORNOS? ? Type：SAS 16.6? ? Category：CNC Lathe

Technical Parameter

Number of spindles	6
Max. capacity	Round (diameter) mm 16 (17)
Hex (on ? at)	mm 13
Square	mm 11
Spindle speed (3 ranges)	rpm 800 to 8’000
Range 1	Ratio 1 rpm 800 to 2’000
Range 2	Ratio 2 rpm 800 to 4’000
Range 3	Ratio 3 rpm 800 to 8’000
Production Speed	p / min. 3 to 80
Max. length of feed stroke with standard cam	mm 63
Max. part length with standard cam	mm 52
Max. length of feed stroke with cam for long part	mm 85
Max. part length with long part cam	mm 75
Number of cross-slides	6
Travel of the cross-slides	mm 20
Number of independent advances	4Travel of the independent slide	mm 45
Travel of the central slide	mm 50
Amount of working degree	° 205
Spindle motor
Max. torque Nm	70 5 2 ft. lbs.
Constant torque up to 1’500 rpm	Nm 47,7 35 ft. lbs.
Constant power from 1’500 rpm (50 % ED)	kW 7,5 10 HP
Camshaft motor
Nominal torque	Nm 5,9
Max. speed rpm	3’000

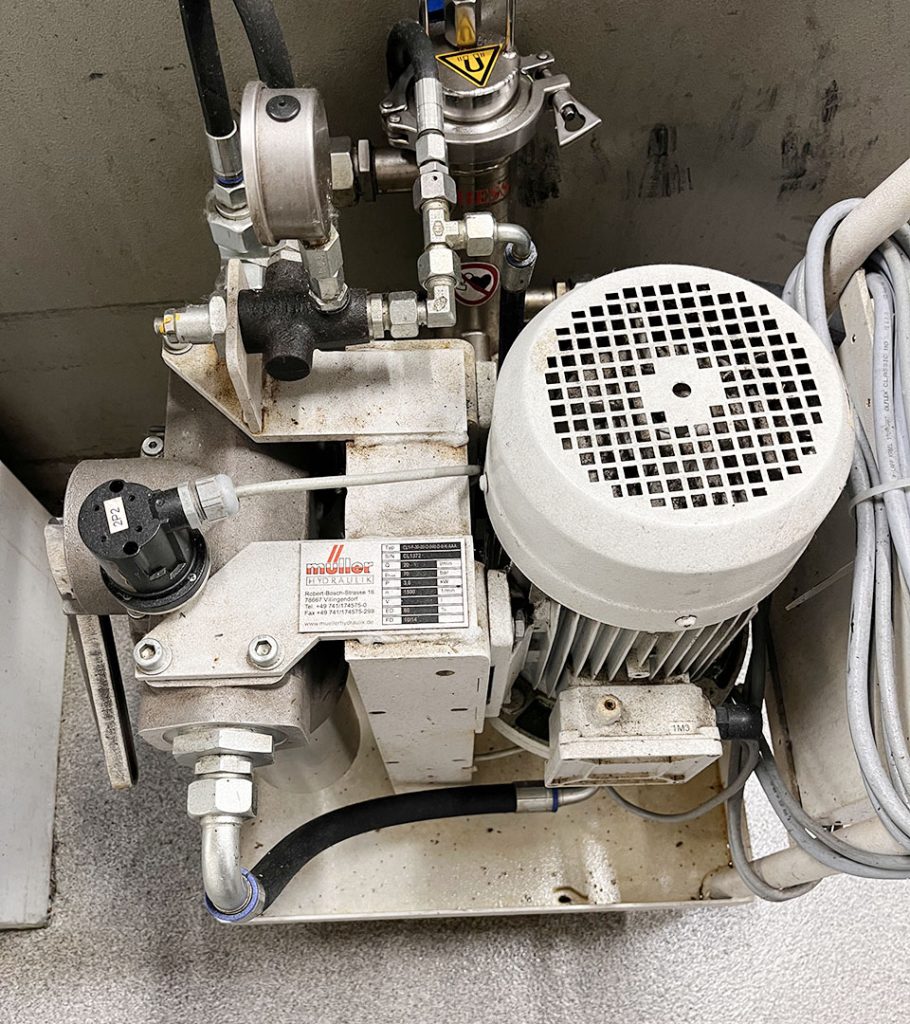

Coolant pump motor	50 Hz
Speed rpm	1’500
Power	kW 2,2 3 HP
Pump capacity	at 60 Hz
Manufacturing standards In accordance with current EEC Speci? cations

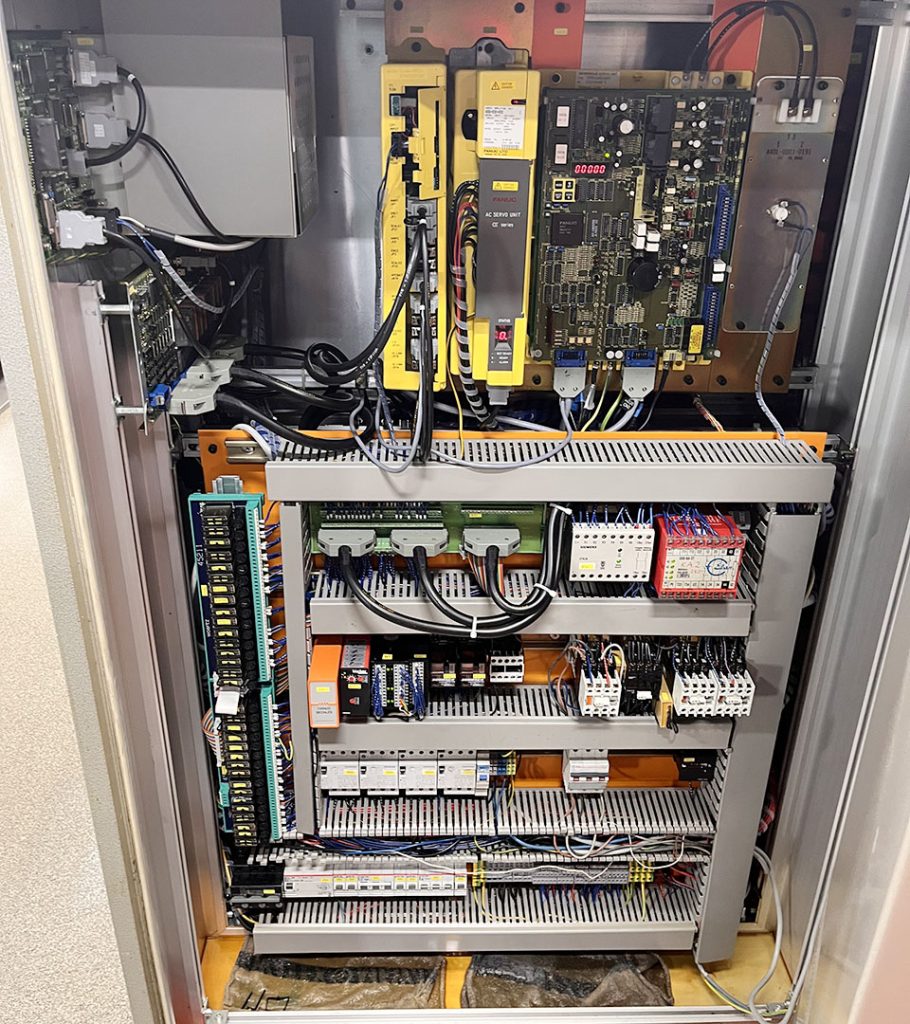

Monitoring system	Fanuc
