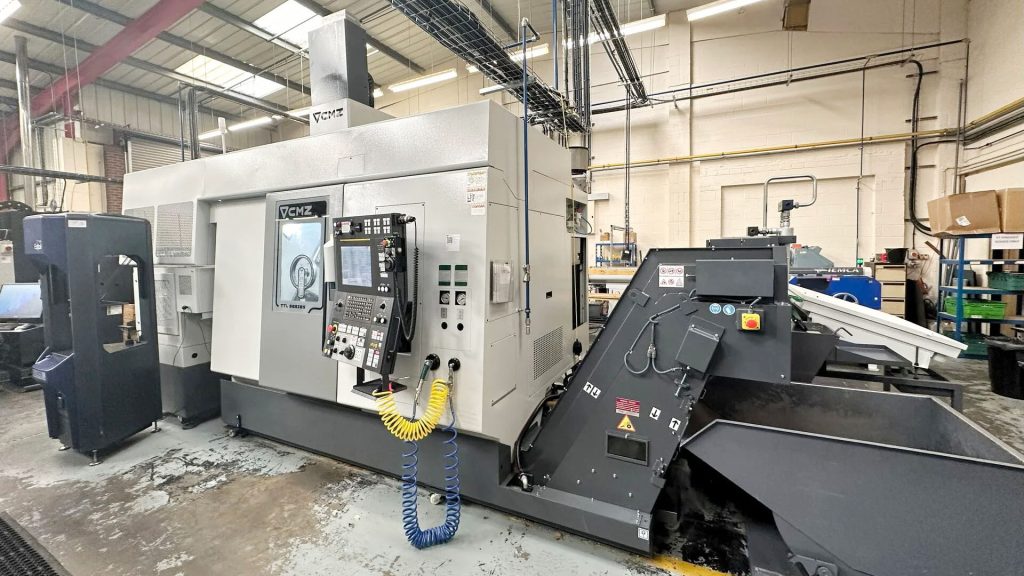

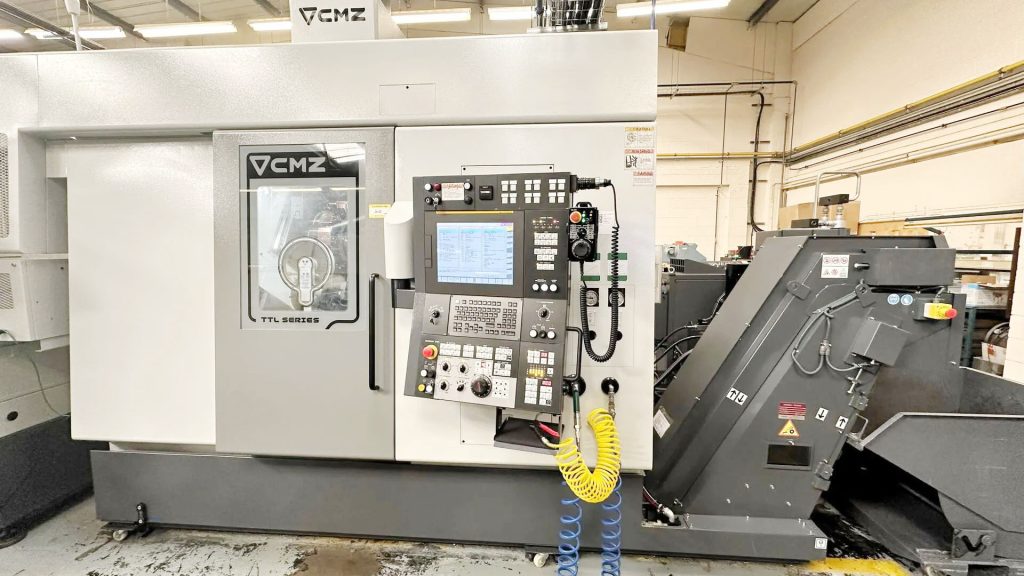

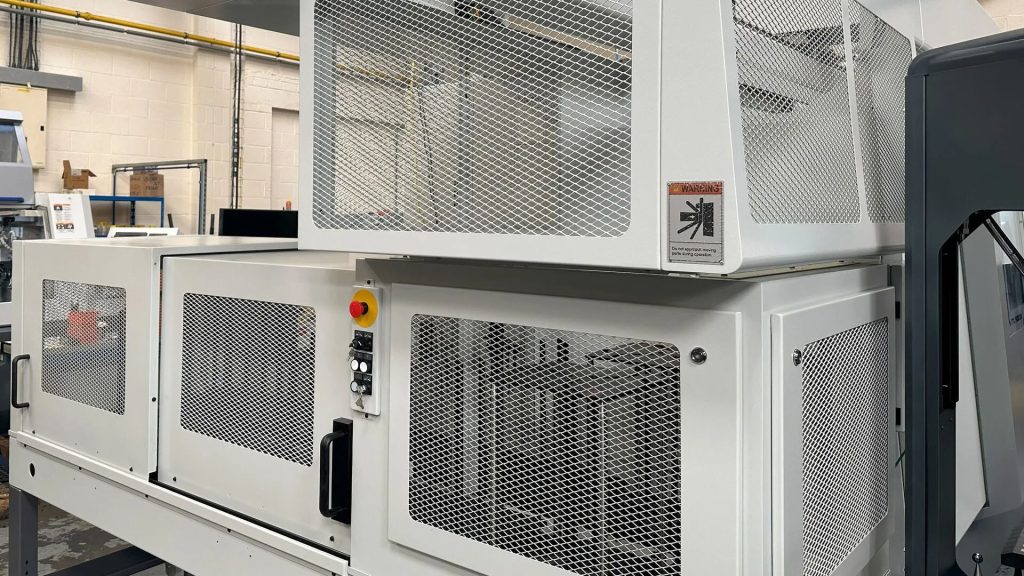

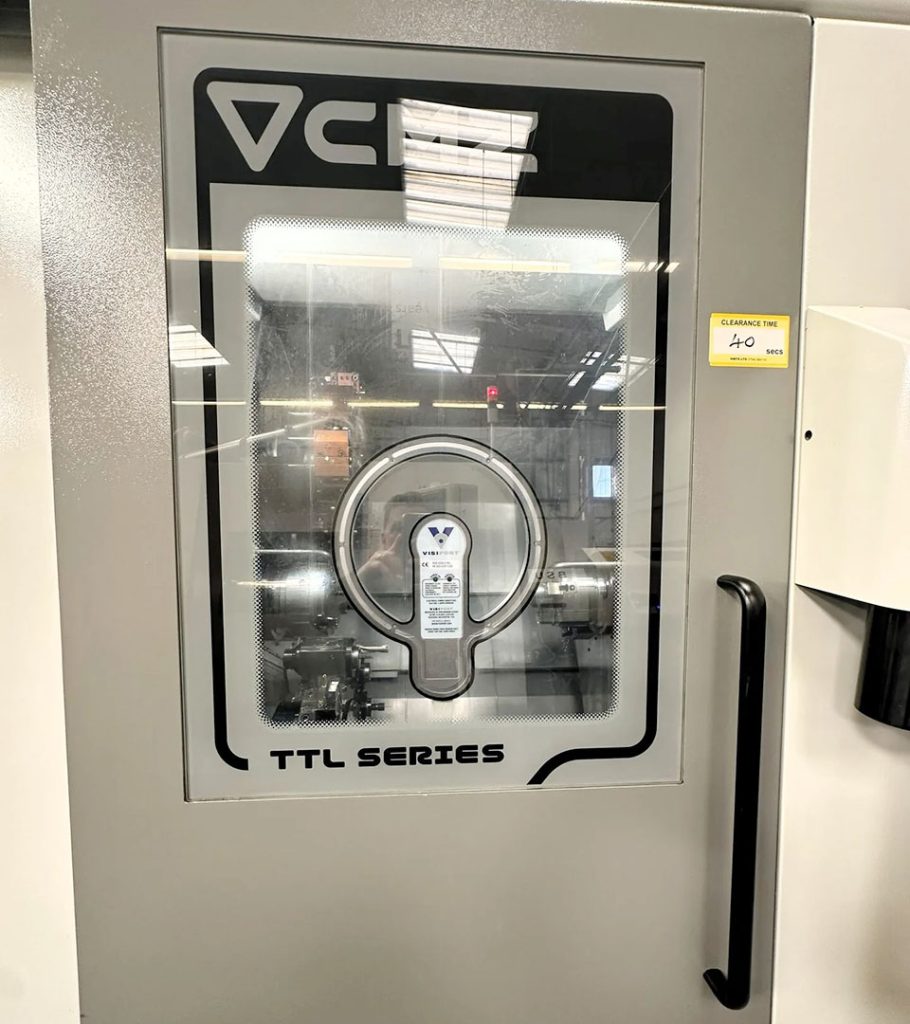

New in CMZ CNC Turning & Milling Centre
Posted by：EurasiacomDate Posted：2024-4

Brand：CMZ? ? Type：TTL-6-66-T1Y-T27+GL2011? ? Category：CNC Turning & Milling Centre

Technical Parameter

Year of manufacture 2021

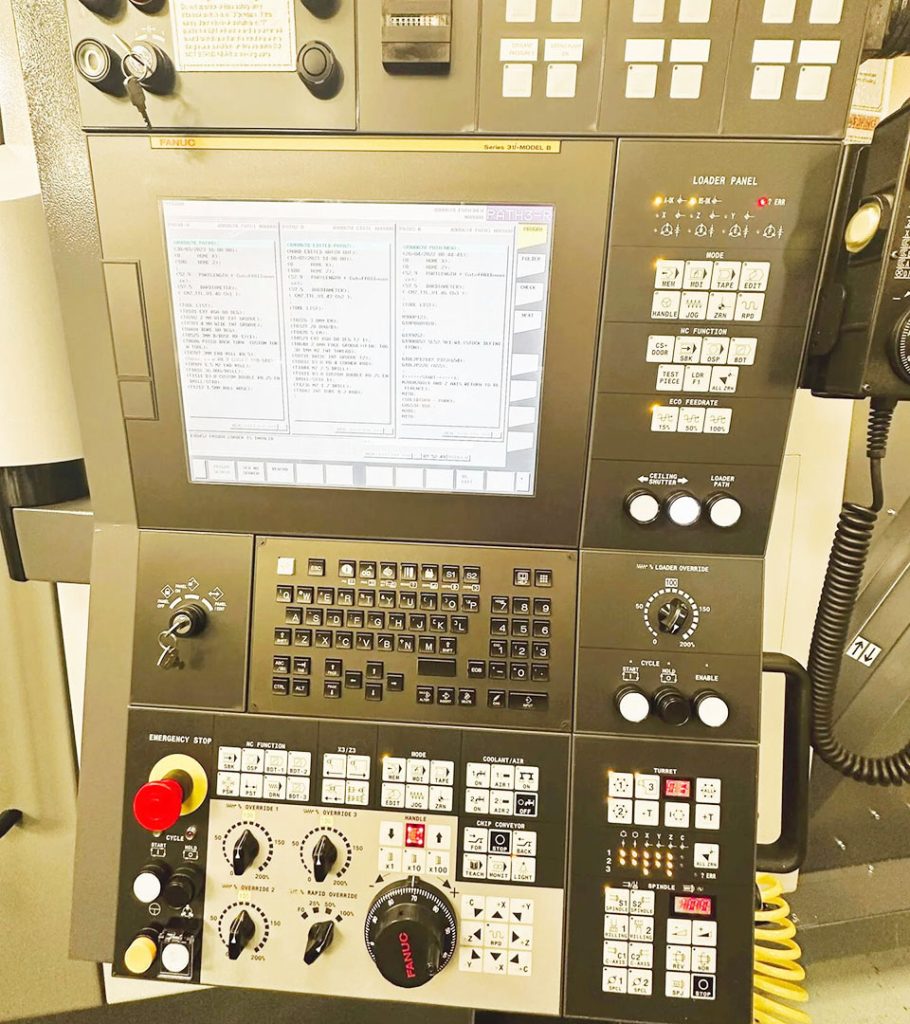

control Fanuc Series 31i-Model B
Approx. Onsite Dimension. (l x w x h) 3,000 x 6,500 x 3,000 mm
Read off operating hours 6,848 h
turning diameter 66 mm
weight approx. 11,000 kg
Max swing over bed 240mm
Max turned diameter 320mm
Distance between spindles 800mm
Max bar capacity (Left/Right spindles) 66 -66mm
Max spindle speed 4000rpm
Spindle motor power 23/35kW
Max spindle torque 205Nm

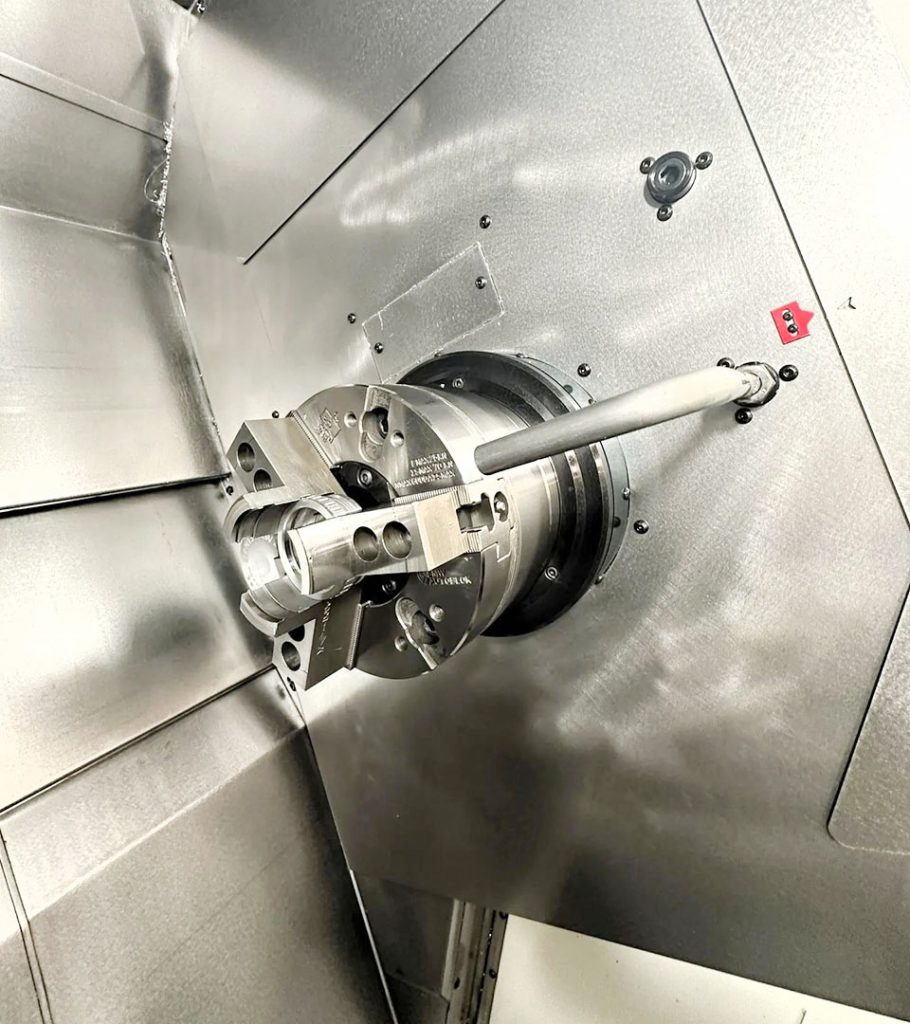

Spindle nose A2-6
Chuck type Collet chuck
Spindle indexing (Model dependant) 0.0001 deg
RIGHT SPINDLE
Max spindle speed		 4000rpm
Spindle motor power 23/35kW
Max spindle torque 205Nm
Spindle nose A2-6
Chuck type (3 jaw hydraulic) Collet chuck
Spindle indexing (Model dependant) 0.0001 deg
X axis (x1, x2) 167.00mm
X axis (x3) -120 + 120mm
Z zxis (z1, z2) 515mm
Y axis -45, +45mm
Z axis (z3) 580mm
Rapid traverse rate (X, Z, Y, m/min) 30/30/20/ m/m
Tailstock (Optional) 580mm
Tool stations 12 (24 positions)
OD tool size 20 x 20
Driven tool positions 12 per turret (24 Total)
Driven tool speed 12000rpm
Driven tool motor torque 42 Nm
Tank capacity 280 litres

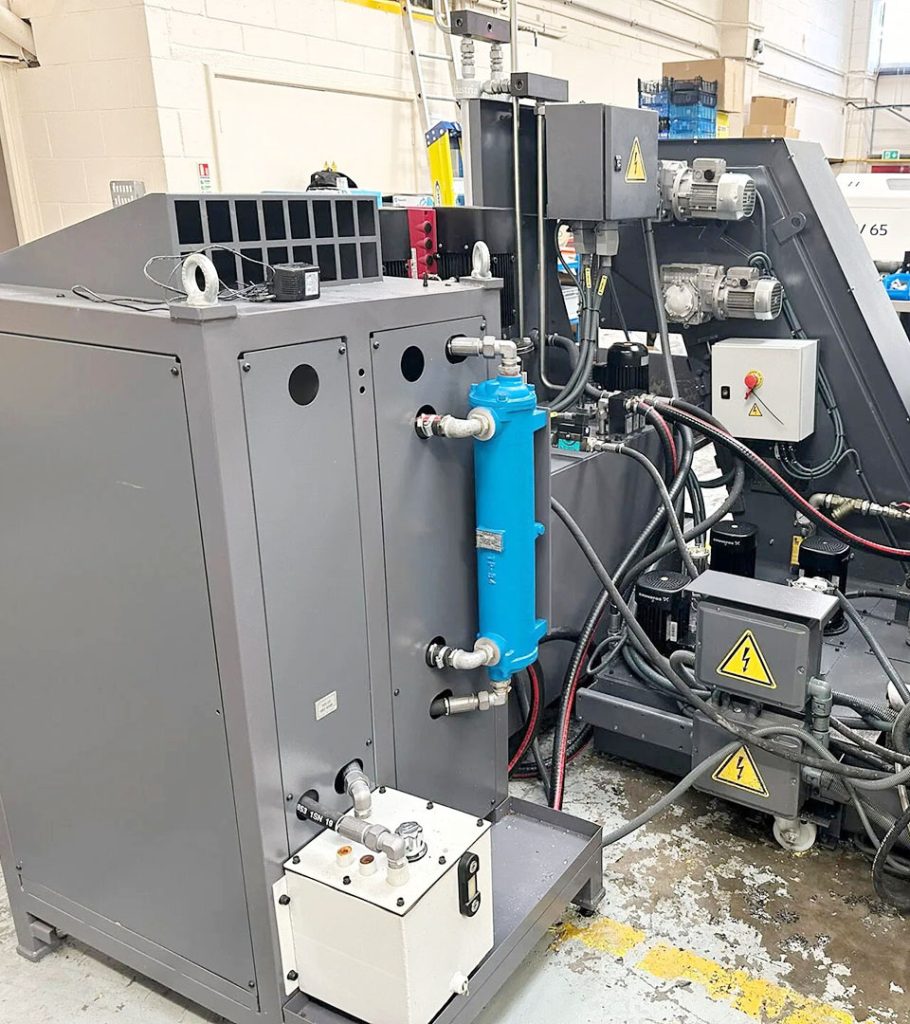

External high pressure unit 70 bar
  •
