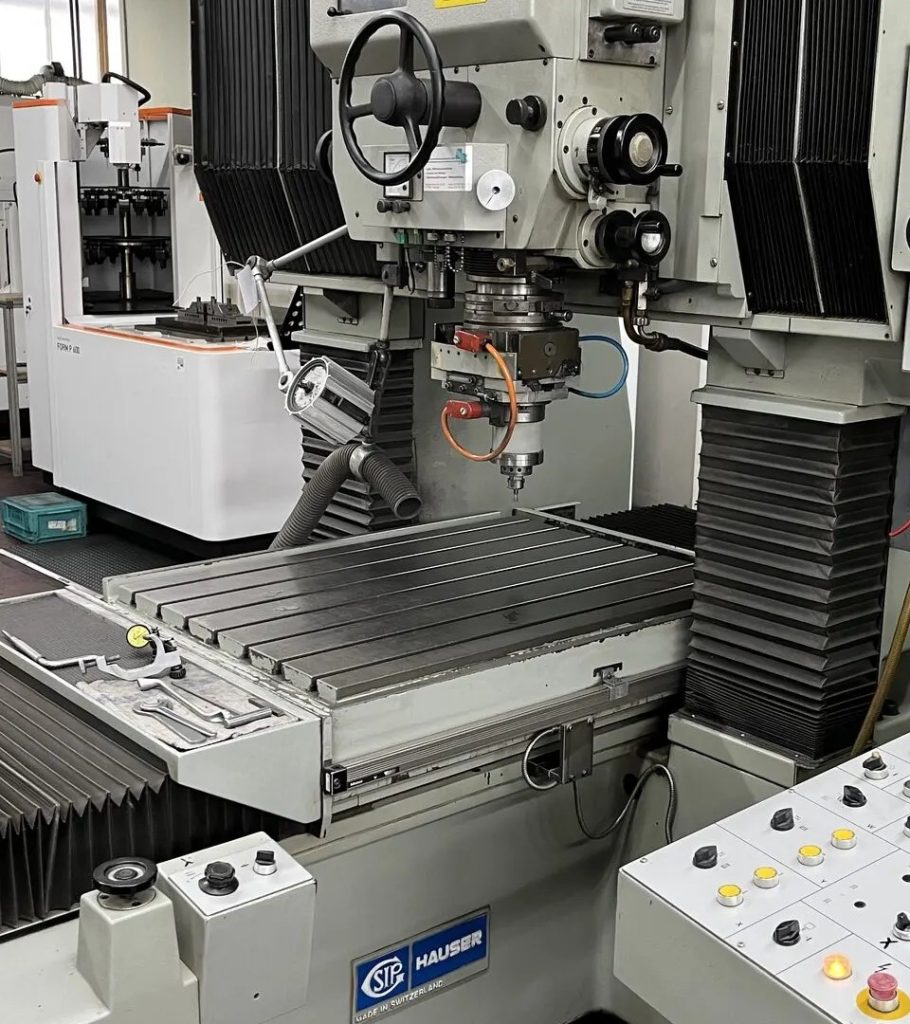

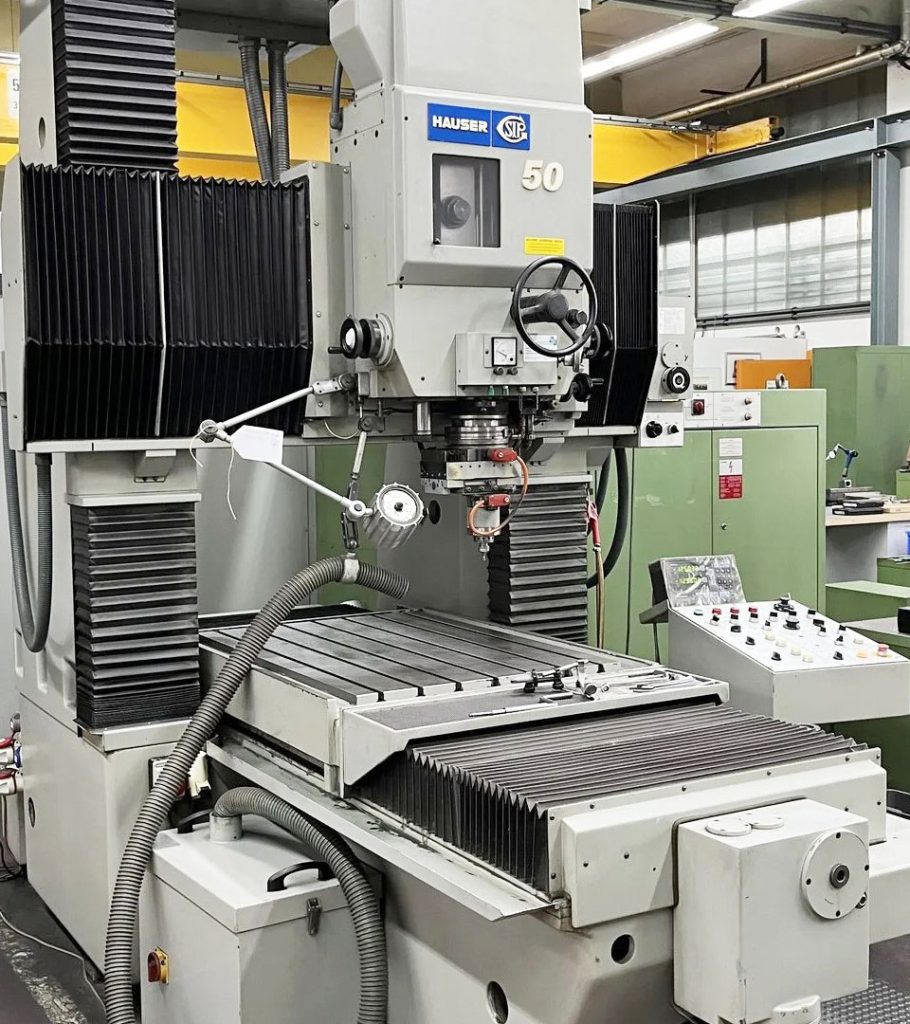

HAUSER jig grinding machine type S50-DR
Posted by：EurasiacomDate Posted：2024-4

Brand：HAUSER? ? Type：S50-DR? ? Category： jig grinding machine

Technical Parameter



Manufacturer HAUSER
Model / Type S50-DR
weight approx. 8,000 kg
Approx. Onsite Dimension. (l x w x h) 4,600 x 2,300 x 2,900 mm
Year of construction probably 1986
Adjustment range
In the X-axis (table slide) 900 mm
In the Y-axis (sanding head) 600 mm
In the W-axis (moving crossbeam) 635 mm
Feed speed
In the X- and Y-axis, direct current drive, infinitely variable 5 – 2500 mm/min
In the W-axis, three-phase drive approx. 800 mm/min
Measured value display
Smallest display unit 0.001 mm
Zero point can be selected as required
Positioning accuracy (basic deviation X, Y) 0.004 mm
Table
Usable table surface 1020 x 860 mm
Permissible table load max. 800 kg
Width of the T-slots 14 mm
Number of T-slots 7
Distance between the T-slots 100 mm

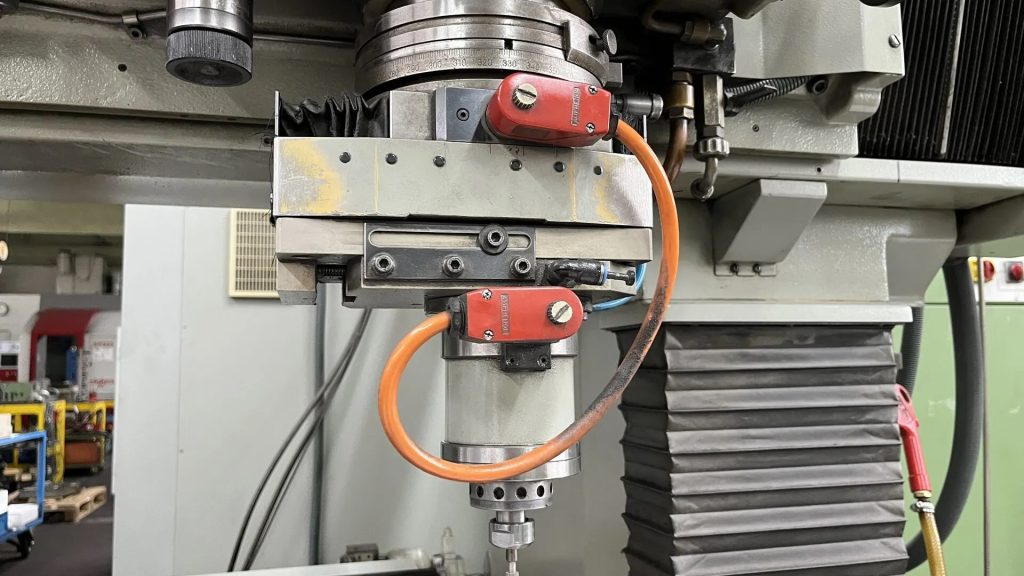

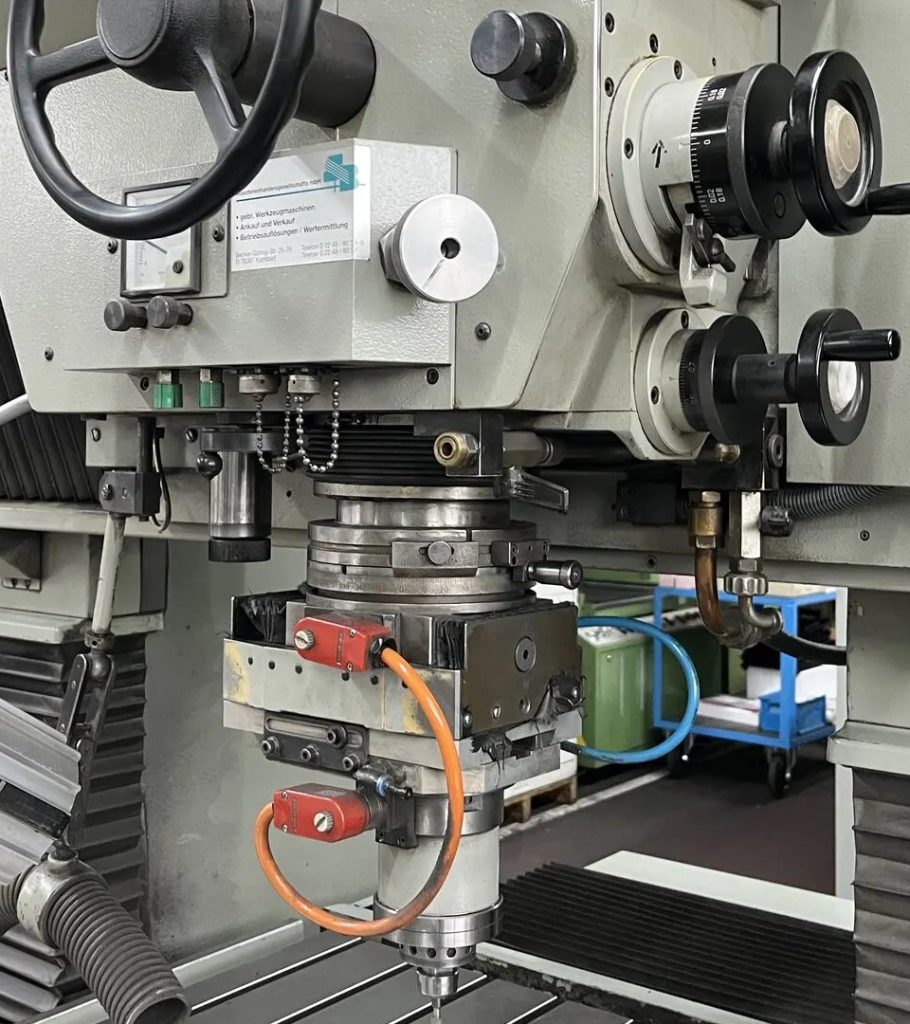

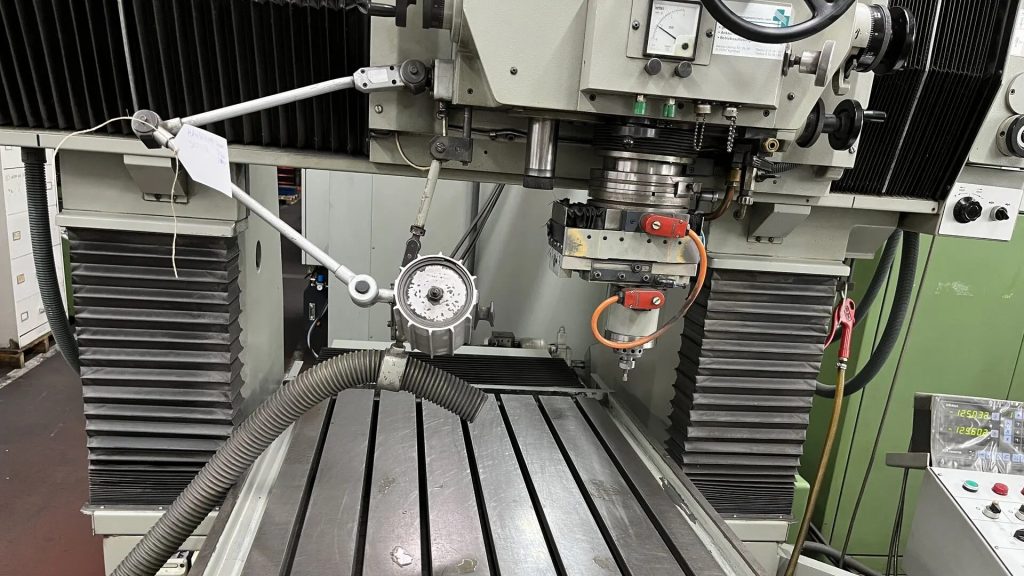

Working range of the sanding head
Grinding spindle speeds, infinitely variable with electric motors 4500 – 80000 rpm
With air turbines up to 100000 and 160000 rpm
Planetary speed, infinitely variable 5 – 250 rpm
Stroke of the grinding spindle sleeve max. 180 mm
Diameter of the grinding spindle sleeve 100 mm
Radial infeed of the grinding wheel 6 mm
Weight compensation of the grinding spindle sleeve pneumatic
Capacity
Cylindrical grinding (with wheel) diameter 100 mm
Without intermediate plate max. diameter 230 mm
With intermediate plate max. diameter 360 mm
Sanding length Z (with mandrel) max. 125 mm
For further technical data see pictures

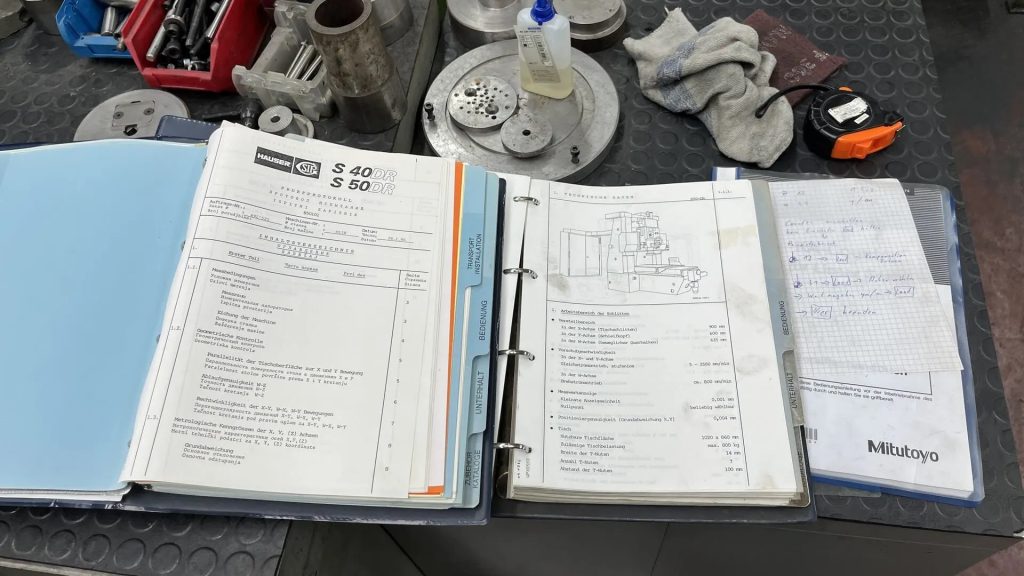

With technical documentation as shown in the pictures

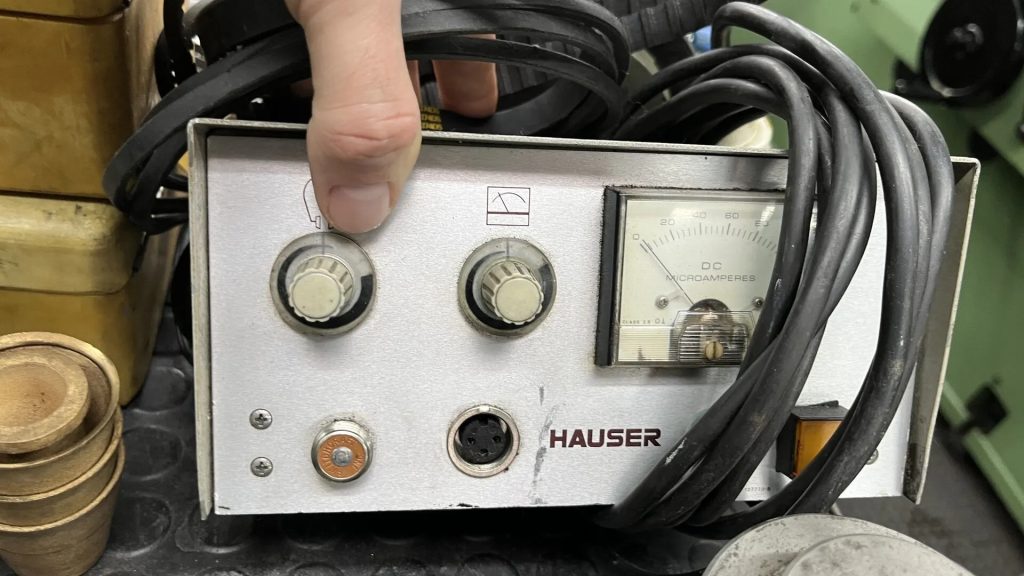

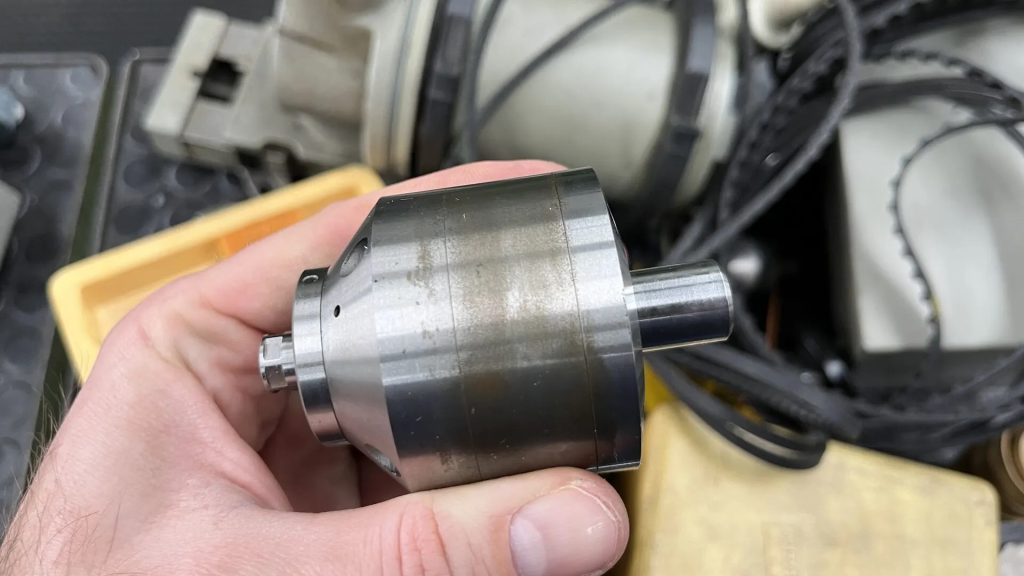

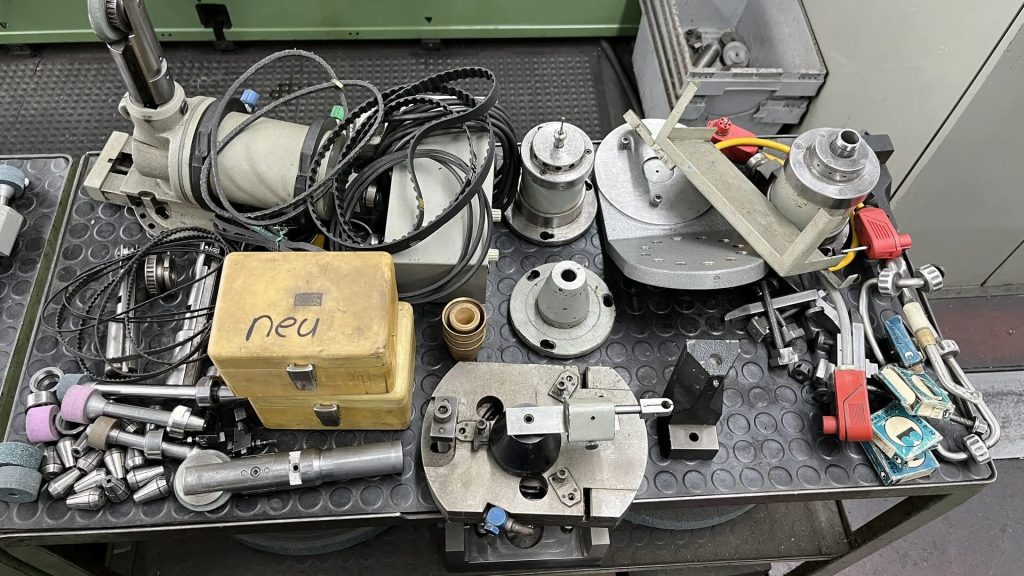

With accessories as shown in the pictures
With motor for groove grinding and other accessories (see pictures)
  •
